Industrial-Grade 2D LiDAR Sensors
Neuvition Titan W1 & Titan P1
See Wider. Measure Smarter. Capture More.
High-Resolution Perception for Demanding Environments
Capturing distances isn’t enough you need reliable spatial intelligence. Neuvition Titan W1 and Titan P1 industrial-grade 2D LiDAR sensors deliver real-time distance measurement, object detection, and surface profiling across demanding industrial environments. With a 270° field of view on the Titan W1 and high angular resolution on the Titan P1, they capture detailed spatial data for smarter automation, efficient operations, and dependable measurement. Now achieve greater visibility and improved operational efficiency with reliable LiDAR technology.
Key Features
Field of View
Detection Range
Angular Resolution
Measurement Accuracy
Data Acquisition
Industrial Protection

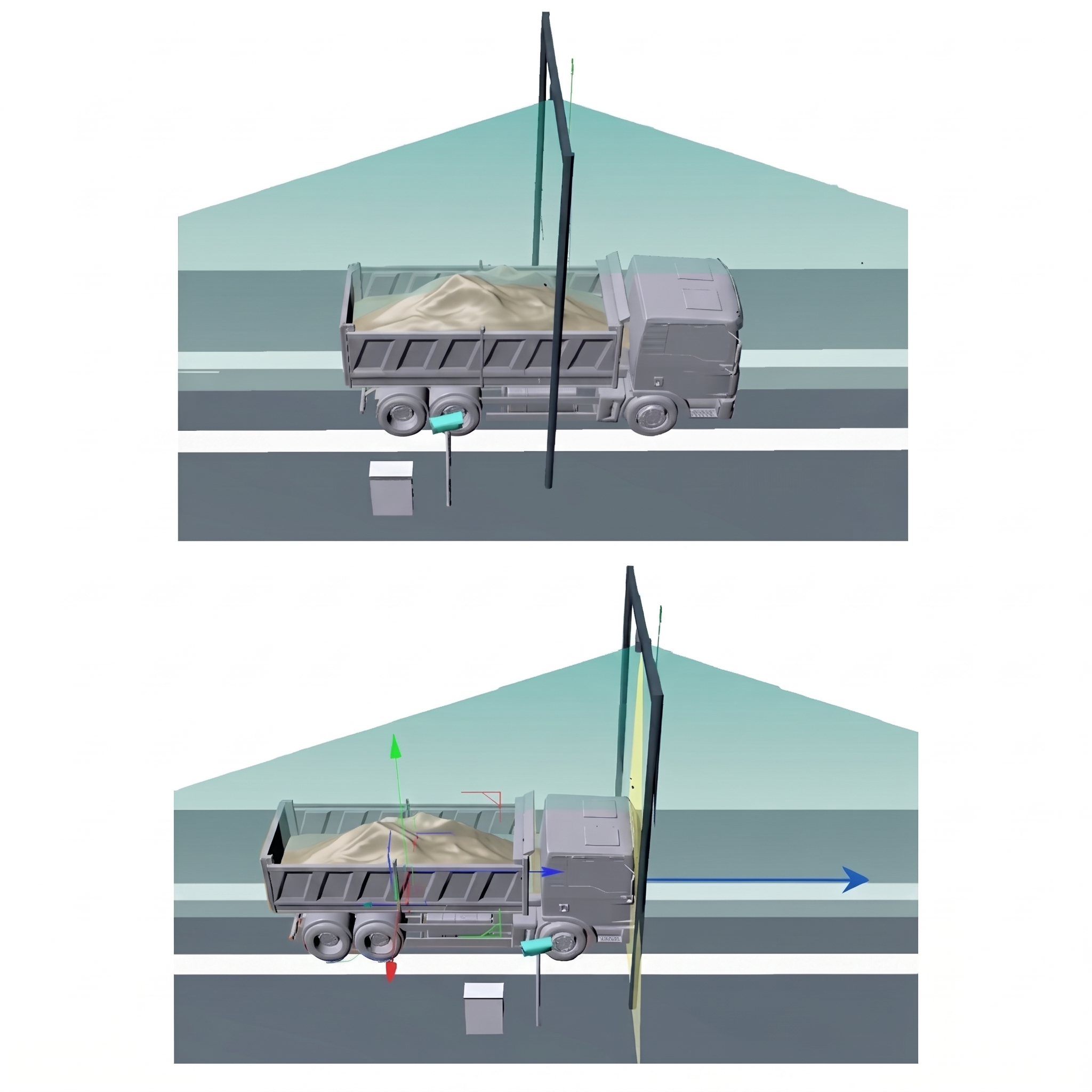

Dual Static & Dynamic Measurement Modes
Every site has different requirements. The Neuvition Titan W1 and Titan P1 can be integrated into truck volume measurement systems that support both static and dynamic scanning.
In static mode, trucks stop beneath the scanning gantry for detailed measurement, with typical system accuracy of ±5%. In dynamic mode, trucks can pass through at speeds of up to 10 km/h, with typical system accuracy of ±8%. This flexibility helps mining and logistics operators reduce truck waiting time, measure routine loads without stopping, and reserve static scanning for applications requiring greater measurement accuracy.
Differential Volume Calculation
Fully Automated Real-Time Processing
Manual inspection and visual estimation can slow down truck operations. The system combines LiDAR sensors, an edge computer, and processing software to detect trucks, capture surface data, reconstruct the load profile, and calculate cargo volume automatically.
Results can be generated in under 10 seconds, depending on the system configuration, and displayed on an outdoor LED screen or stored for reporting.
This reduces manual intervention and helps keep material moving efficiently. By shortening measurement cycles, the system helps reduce truck turnaround time, minimize queues at inspection points, and increase throughput at busy mining and logistics facilities.

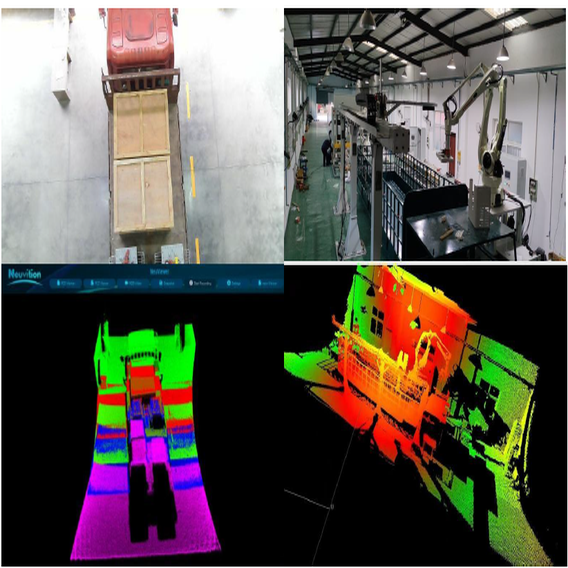

Open Integration & Scalability
Know more about Titan LiDAR Sensors

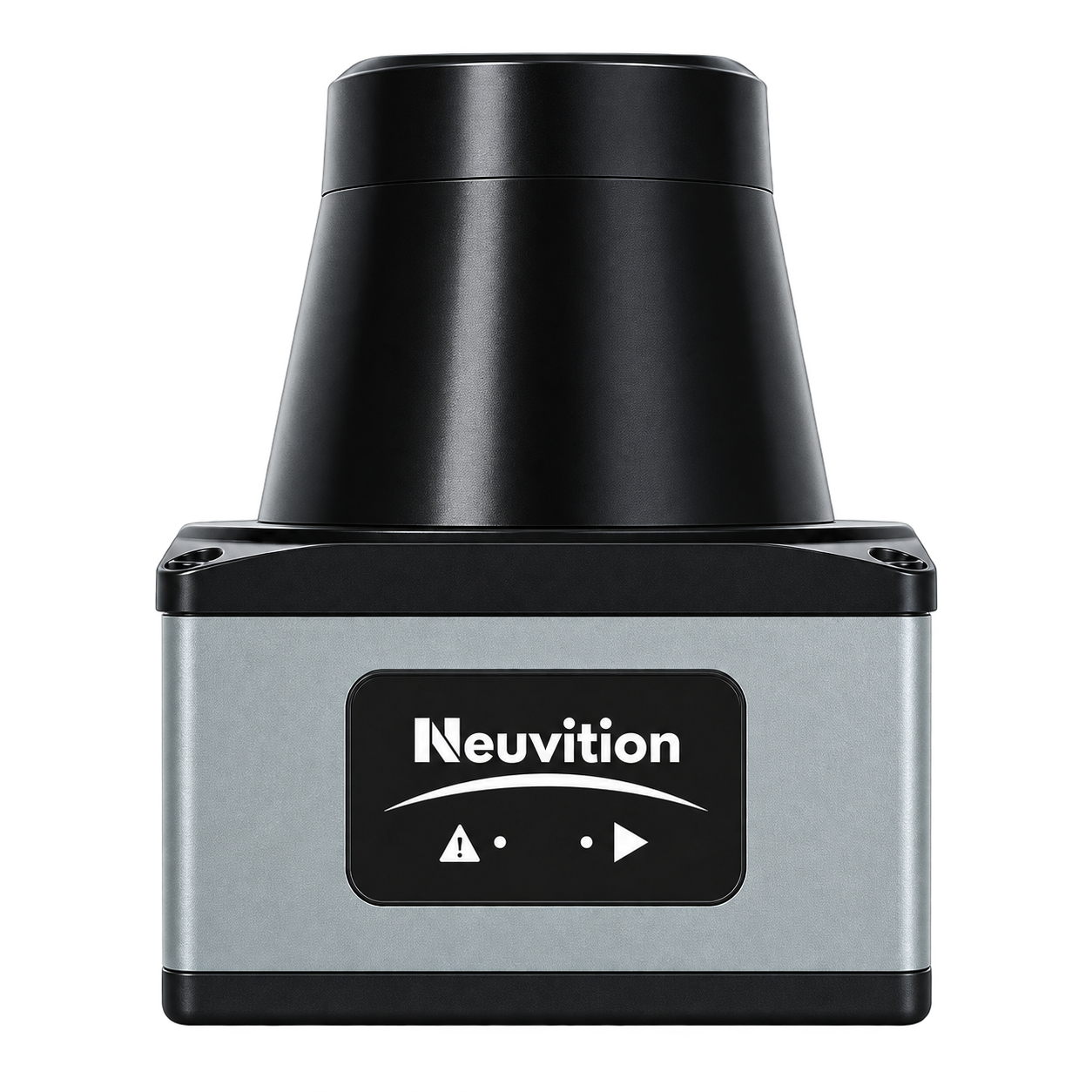

| Specification |
Titan W1 |
Titan P1 |
|---|---|---|
| Model | Titan W1 | Titan P1 |
| Distance | 0–40 m | 1–30 m (10% Reflectance), 1–80 m (90% Reflectance) |
| Return Mode | Single Returns | Multiple Returns |
| Repetition Rate | — | H4320 |
| Field of View | H 270° | H 135° |
| Angular Resolution | 0.25° | H 0.044° |
| FPS | — | — |
| Repetition | — | 200,000 Points/s (Max) |
| Weight | 160 g | 1.2 kg |
| Size | 60 mm × 60 mm × 80 mm | 134 mm × 111 mm × 136 mm |

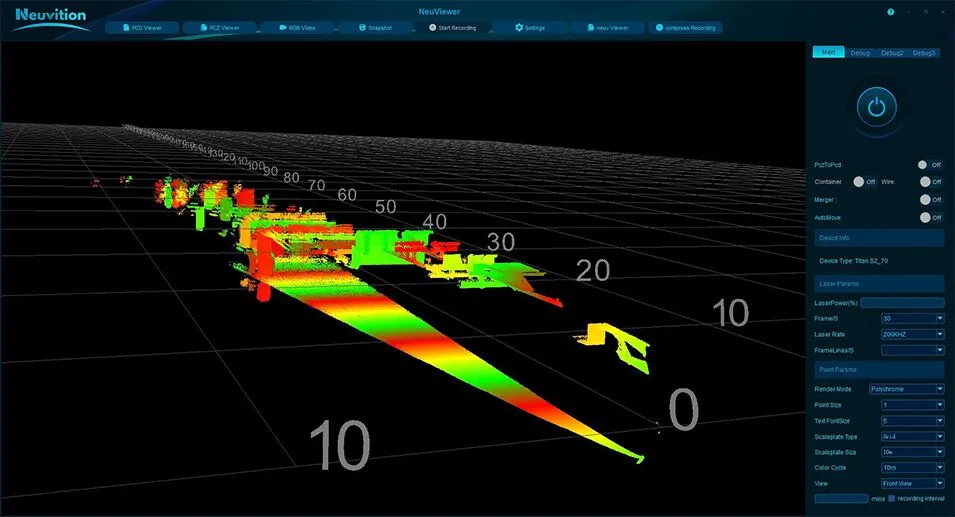

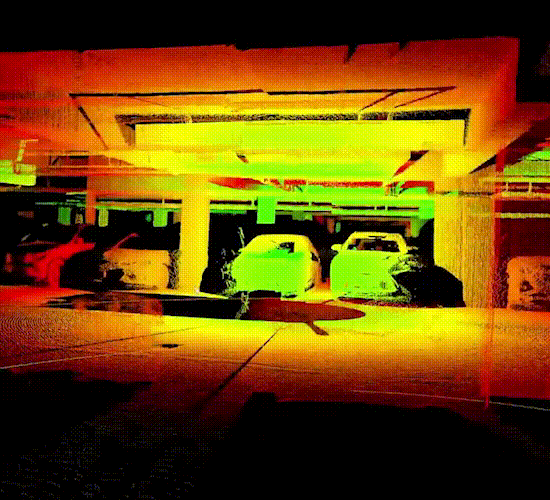

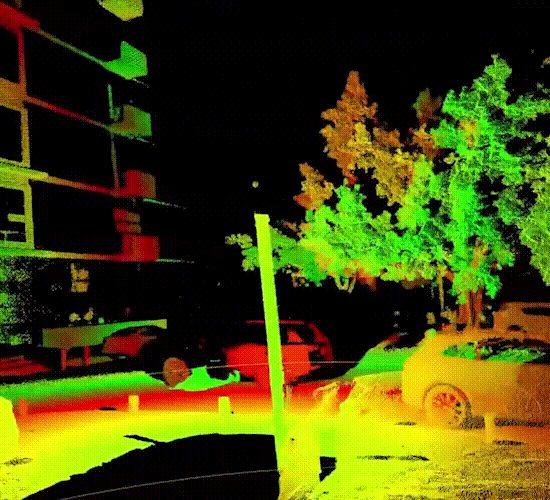

USE CASE POINT CLOUD
Visualize real-world environments through detailed LiDAR point clouds. Identify vehicles, structures, vegetation, and surrounding objects with colour-coded spatial data for accurate mapping, scene analysis, and 3D environment understanding.
Compatible Software

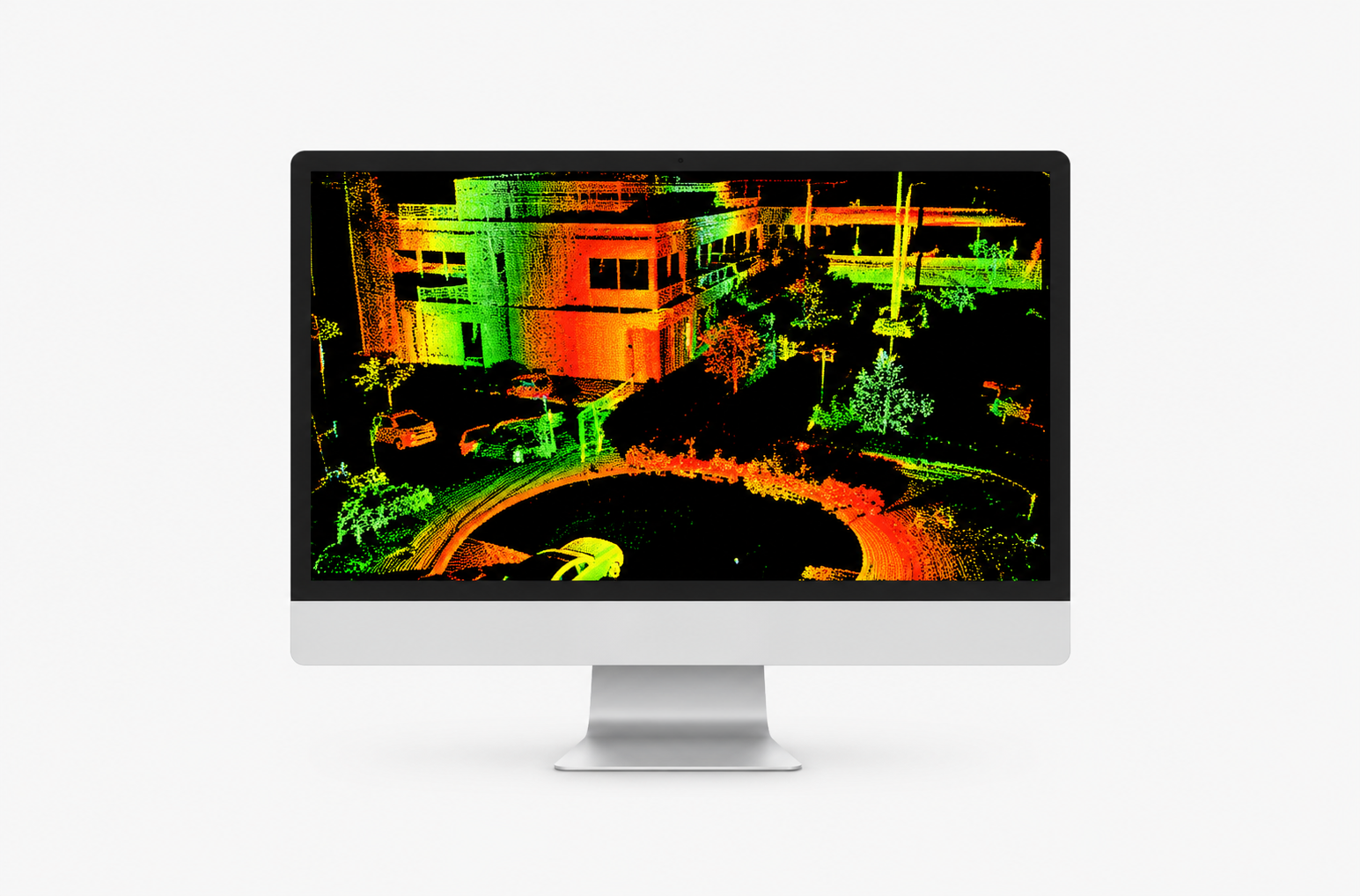

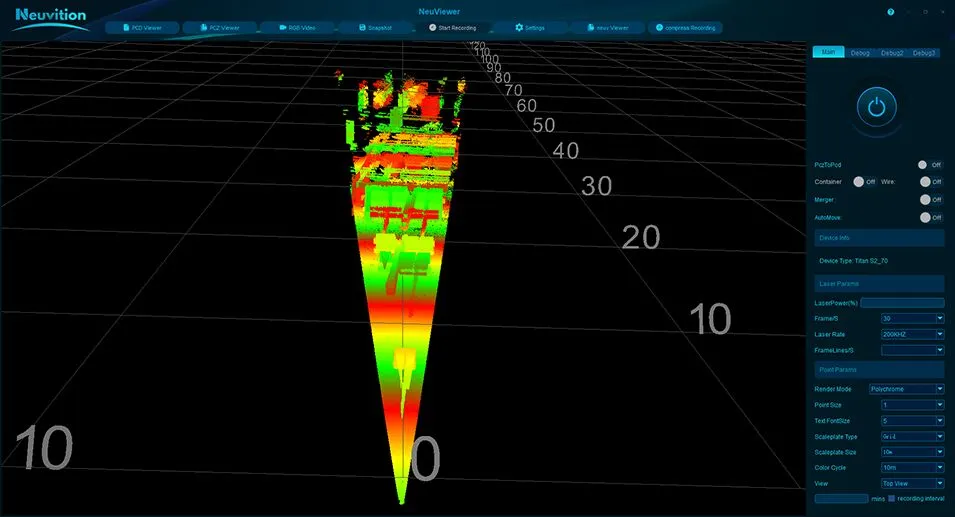

NeuViewer
Visualize, configure, record, and replay LiDAR point-cloud data in real time.
NeuViewer SDK
Integrate LiDAR data into custom applications with a flexible, cross-platform development toolkit.
AI Vision
Combine AI-powered visual recognition with LiDAR data for real-time object and intrusion detection.
Applications

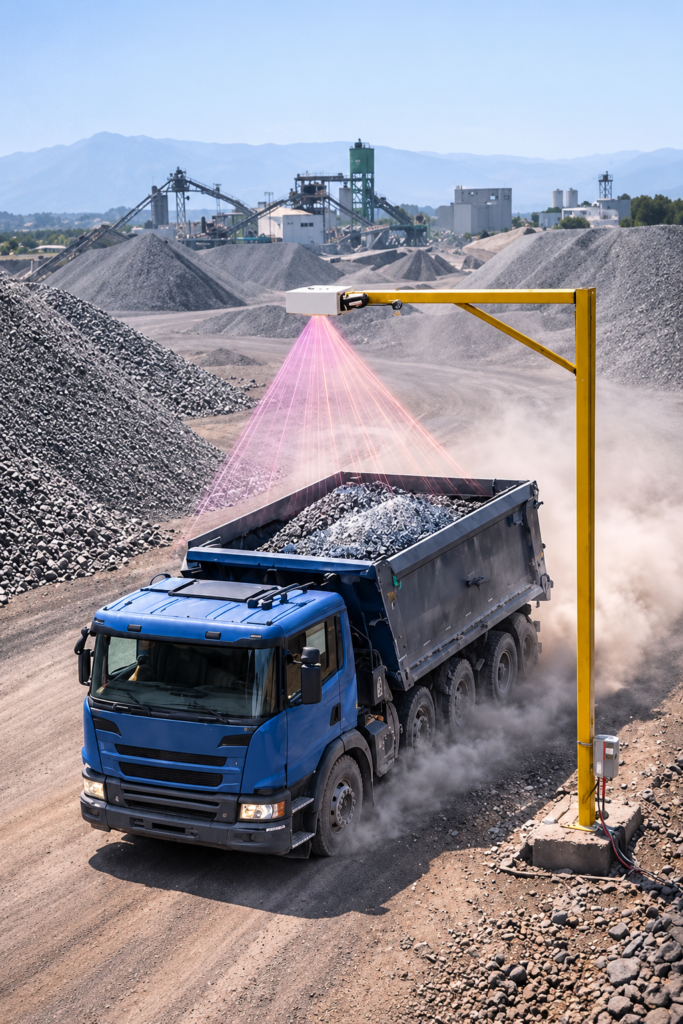

Bulk Truck Cargo Measurement
Learn More

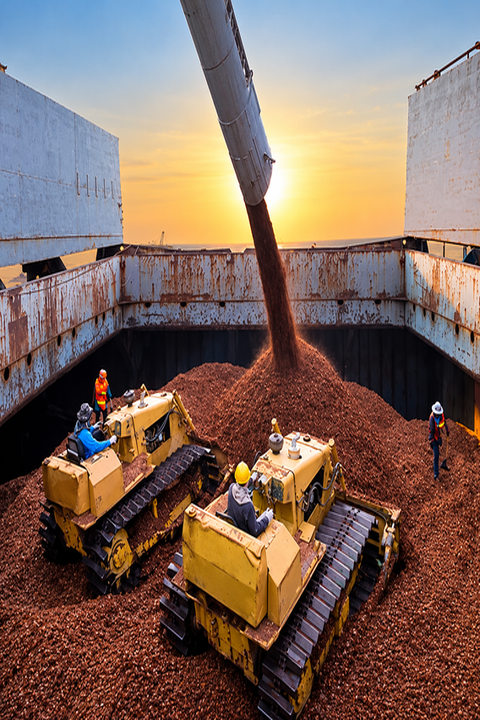

Large Stockpile Measurement.
Learn More

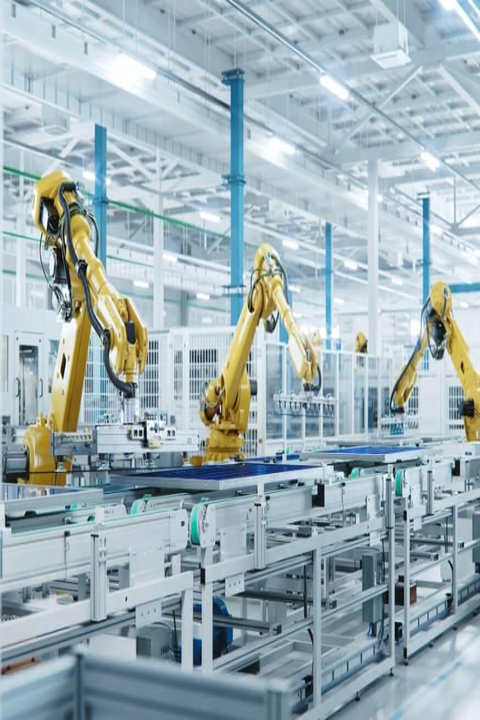

Industrial Automation

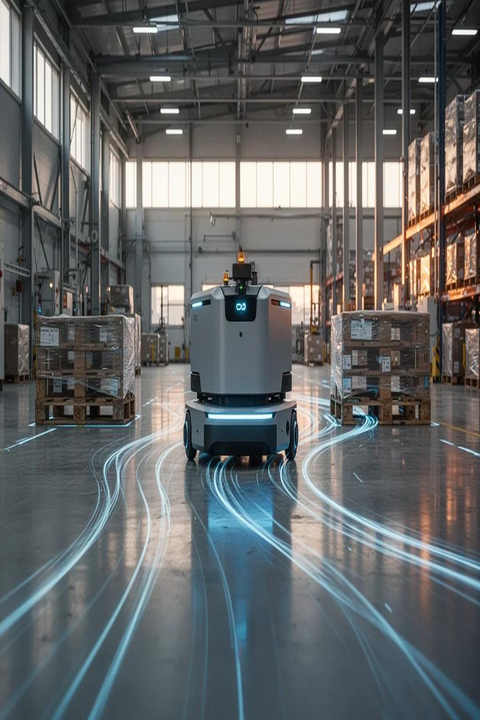

AGV & Robot Navigation
Smart Ports & Logistics

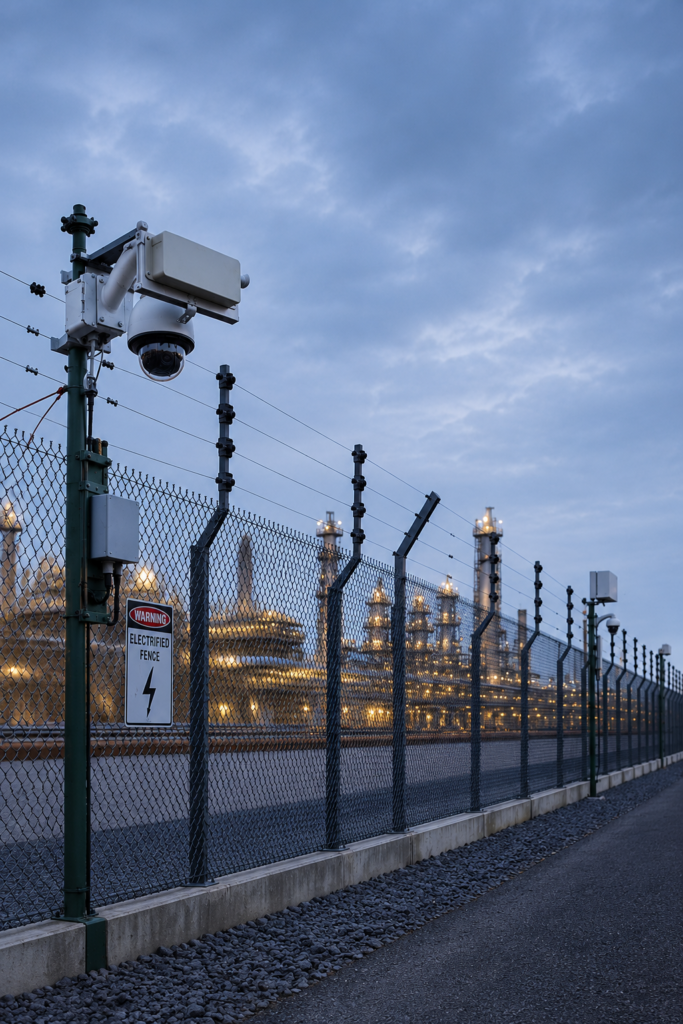

Intrusion Detection
In today’s fast-evolving world, accurate measurement demands more than data—it needs intelligent sensing. Advanced LiDAR solutions deliver reliable distance measurement, real-time scanning, and versatile performance across industrial applications.
Ready for the Next Level of 3D Perception?
Discover how high-resolution LiDAR can strengthen detection, mapping, and spatial awareness.
