Full-Spectrum Intelligence. Airborne Precision.

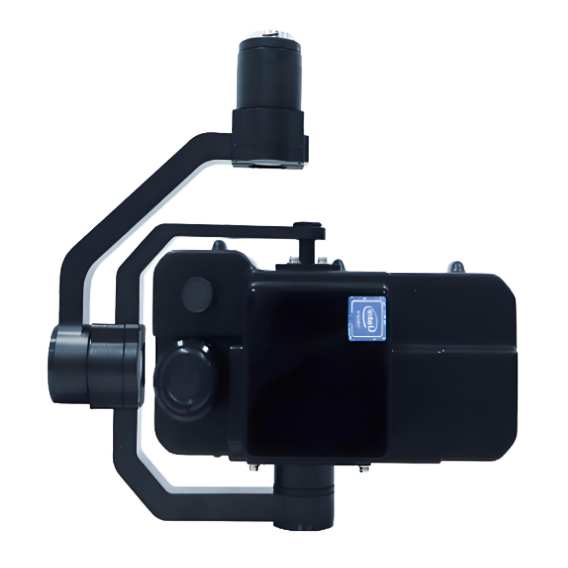

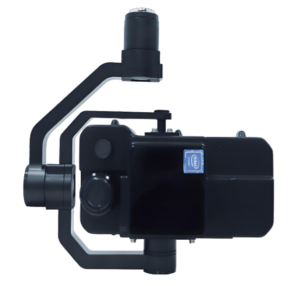

FS6B Airborne Full-Spectrum Hyperspectral Camera
See beyond the visible. Discover deeper insights.
Transform How You See the World from Above
Capturing full-spectrum data—from visible to SWIR—it reveals insights that traditional imaging misses. With CHNSpec lightweight, UAV-ready system, analyse crops, minerals, water, and materials with real-time, precision-grade intelligence. No complexity. Just powerful, decision-ready insights.
Key Features
400-2500 nm
Spectral Range
≥1200
Spectral Channels
< 2.5 nm
Spectral Resolution
≤72 W
Power Consumption
25.36°@f=25 mm
Field of View
Ultra-Light. Mission-Ready.
Fly longer and deploy faster with a compact 1.2 kg system built for real-world UAV operations. Low power usage of ≤72 W ensures efficient flights without compromising performance or data quality. Designed to work across multiple platforms without adding operational complexity.
Its lightweight design reduces payload burden, helping maximise flight endurance and mission flexibility.
Quick integration and streamlined deployment enable faster project execution in the field. More area covered. Less effort required.

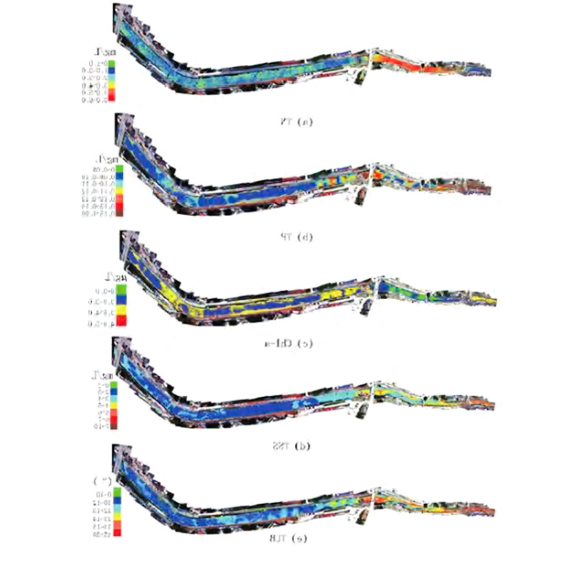

Full-Spectrum. Zero Compromise.
See beyond what standard cameras can capture with complete 400–2500 nm coverage—combining visible and infrared data into one powerful view. With ≥1,450 spectral channels, every detail is captured with depth and accuracy.
It brings together everything needed to understand what’s really happening on the ground.
Now reveal subtle material differences, moisture variations, and spectral signatures that remain invisible to conventional imaging systems.
From environmental monitoring to mineral exploration, gain the spectral intelligence needed for confident decision-making.
Precision That Performs
Capture highly detailed and reliable data with ≤2.5 nm spectral resolution (VISNIR) and ≤10 nm (SWIR). A strong 600:1 signal-to-noise ratio ensures clarity even in challenging environments. Consistency in data ensures every result can be trusted and validated.
Detect subtle spectral variations with greater confidence, enabling accurate material identification and analysis.
Advanced sensor technology delivers stable, high-quality data across diverse lighting and environmental conditions.
Now capture with clarity, turning data into intelligent insights, confident decisions and smarter operations.
Know more about FS6B Full-Spectrum Hyperspectral Camera
| Specification | Details | |
|---|---|---|
| Spectral Range | VISNIR (400-1000nm) | SWIR (900-2500nm) |
| Merged Spectral Range | 400-2500nm | |
| Dispersive Element | Transmission Grating | |
| Number of Spectral Channels | ≥1200 | ≥250 |
| Number of Merged Spectral Channels | ≥1450 | |
| Number of Spatial Channels | ≥1920 | ≥640 |
| Number of Merged Spatial Channels | ≥640 | |
| Spectral Sampling Interval | ≤0.6nm | ≤6.5nm |
| Spectral Resolution (FWHM) | ≤2.5nm | ≤10nm |
| F-number | F/2.5 | F/2.5 |
Compatible Software

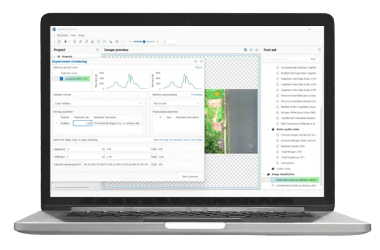

FigSpec Studio

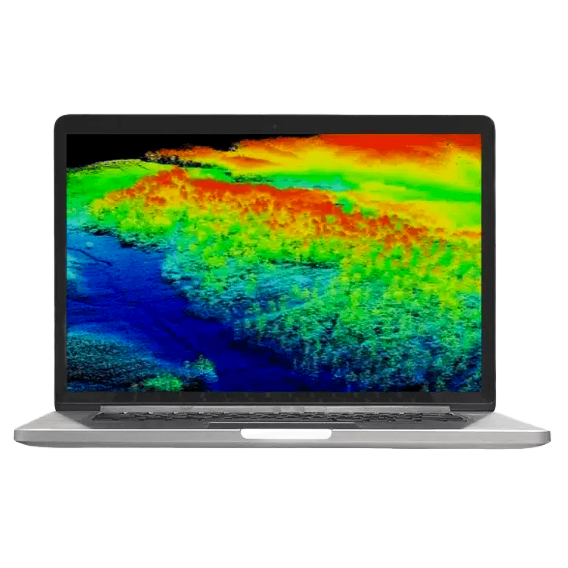

Advanced software for capturing, processing, and analyzing hyperspectral data with precision.
Compatible UAV
JATAYUH MAX UAV
Powering Smarter Missions
UAV for Every Customised Need
SHAURYA UAV
Delivering Distinction
Professional LiDAR & Multispectral Drone
Applications
Precision Agriculture
Forestry
Learn More
Environmental Monitoring
Mining
Learn More
Geology
Industrial Sorting & Quality Control
Aerial Surveying
In today’s fast-evolving world, decisions demand more than data—they need location intelligence. Geospatial intelligence solutions bring clarity, speed, and precision across every application. Unlock the true value of your data and turn insights into impact.
Bring Precision, Clarity, and Insight to Every Flight.
Discover how the FS6B Hyperspectral Camera transforms every flight into precise, actionable insight.
