Advanced Multi-Sensor Camera UAV/UGV PAYLOAD

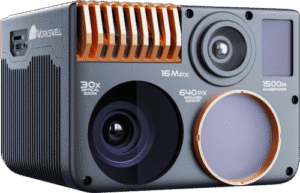

WIRIS Enterprise
Capture actionable insights — in real time, from a single aerial payload.
One System. Complete Aerial Insight.
Capturing data isn’t enough—you need complete intelligence. WORKSWELL WIRIS Enterprise combines thermal, visual, and spatial data in a single flight—capturing heat anomalies, structural details, and precise measurements together. With radiometric imaging, dual RGB cameras, and an integrated rangefinder, it delivers real-time, decision-ready insights. Now get greater accuracy and maximum operational efficiency in fewer flights.
Key Features
Payload
Detection Range
Full HD
Radiometric
px
Up to

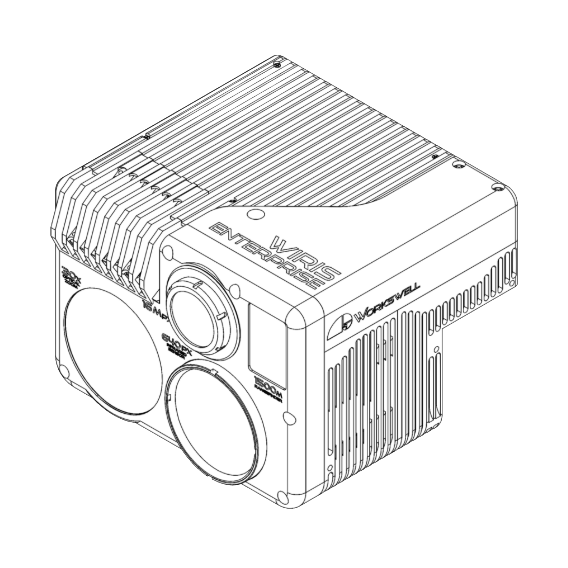

Precision Beyond Distance
Distance no longer limits aerial inspection, as targets can be measured up to 1,500 m with real-time, eye-safe laser accuracy. Each capture is enriched with exact spatial data, giving every observation measurable context.
Thermal and visual insights are no longer just visible but precisely located. This allows inspections to be performed from safer distances without losing accuracy.
Accurate distance measurement transforms observations into actionable, location-specific insights across every mission. What once required proximity can now be achieved with confidence from afar.

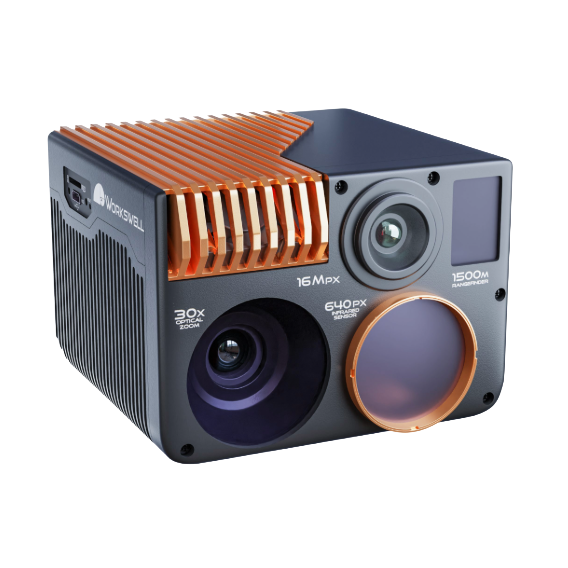

Thermal Clarity That Reveals Everything
Understanding heat requires more than detection—it requires clarity. With 1.3 MP radiometric thermal imaging, detailed temperature data is captured in a single shot. Even the smallest anomalies become visible and measurable across complex environments.
High sensitivity ensures subtle variations are not overlooked during analysis. Every scan delivers reliable data that supports accurate, confident decisions.
Greater thermal detail enables earlier detection, helping prevent issues before they escalate.

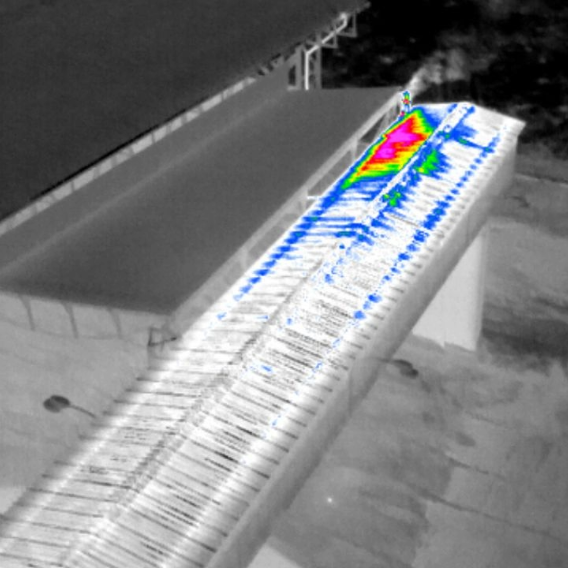

Intelligence That Works in Real Time
Data becomes truly valuable when it can be acted on immediately. Onboard processing enables insights to be generated during flight operations. Detection, measurement, and alerts work together in real time.
All systems remain synchronised for consistent and reliable performance. This allows faster responses and more informed decisions without delay.
Mission-critical information remains accessible throughout the operation, ensuring greater situational awareness. From detection to decision-making, every workflow becomes faster, more efficient, and more responsive.

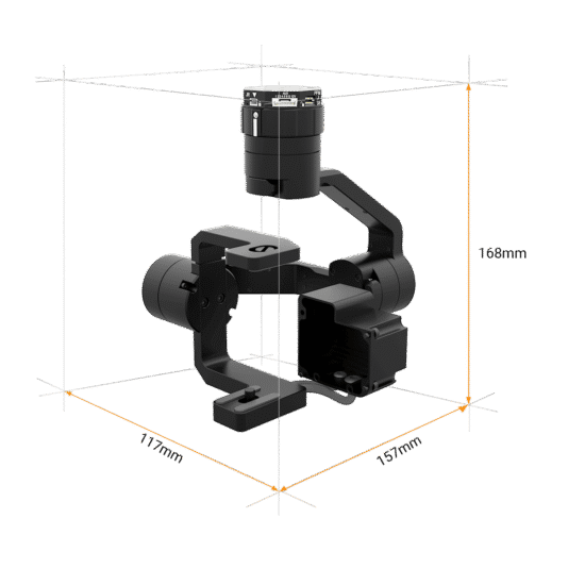

Easy integration into all solutions
The dedicated gimbal system for the WIRIS Enterprise camera is designed to work seamlessly with the device, with built-in functions that enhance aerial imaging performance. This makes it an ideal solution for a variety of specialised applications, including thermal inspections, security operations, firefighting, geological and archaeological surveys, forestry research, and ecological and environmental monitoring.
Flexible integration simplifies deployment across a wide range of aerial platforms, while reliable system compatibility ensures consistent performance across diverse mission requirements.
From routine operations to complex field environments, seamless interoperability supports dependable performance in every deployment.
Know more about WIRIS Enterprise
| Key Feature Specifications | Details |
|---|---|
| Super Resolution Mode | 1.3 Mpx IR images in one shot |
| Laser Rangefinder | Distance measurement: 10 to 1500 m (32 to 4920 ft) Divergence: 1.4 x 0.4 mrad EN 60825-1:2015-07 eye-safe 905nm |
| Onboard Operating System | WIRIS OS, full access to all camera functions |
| Thermal Camera Specification | Details |
|---|---|
| IR Camera Resolution | 640 x 512 pixels |
| IR Super Resolution Mode | 1,266 x 1,010 pixels (improvement of native resolution up to 1.3 Mpx) |
| Frame Rate | 30 Hz or < 9 Hz |
| Absolute Accuracy | ±2% or ±2°C |
| Spectral Range / Detector | 7.5 – 13.5 μm / Uncooled VOx microbolometer |
| Available Lenses | 18°, 32°, 45°, 69° (exchangeable lenses, all calibrated), visit FOV calculator |
| Digital RGB Cameras | Details |
|---|---|
| Fixed Visual Camera | 16Mpx Resolution |
| High Resolution Fixed Camera | 4,656 x 3,496 pixels (16 Mpx), 1/2.8″ IMX298 sensor |
| 30x Optical Zoom Camera | 1,920 x 1,080 pixels (Full HD), 1/2.8″ EXMOR R CMOS sensor |
| Optical Zoom Camera Image Enhancement | Ultra zoom 2.3° – extra wide 63.7°, 129.0 mm – 4.3 mm |
| Optical Focus Camera – Autofocus | Autofocus with automatic or manual exposure control |
| Image Enhancement | Auto-white balance, WDR, IR cut filtering, DEFOG, 3D noise reduction |
Compatible Software

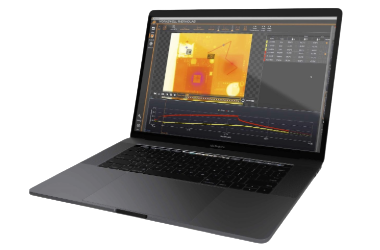

ThermoLab
Advanced thermogram analysis with GPS tagging and RGB visual integration.
Compatible UAV
JATAYUH MAX UAV
Powering Smarter Missions
UAV for Every Customised Need
SHAURYA UAV
Delivering Distinction
Professional LiDAR & Multispectral Drone
Applications
Utilities
Learn More
Mining
Learn More
Power Line
Learn More

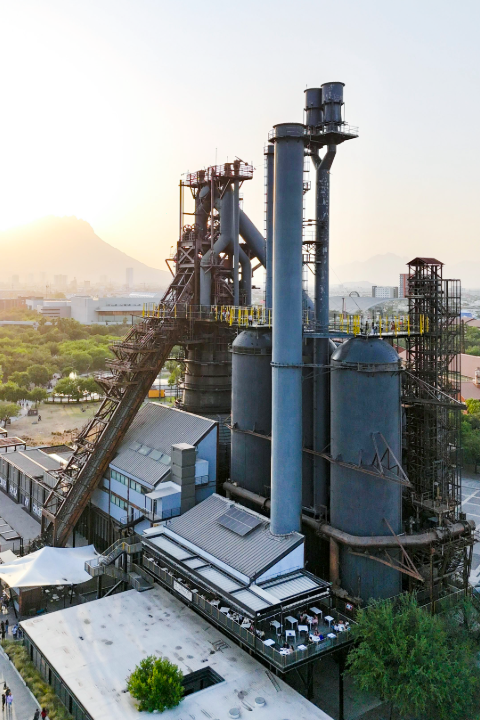

Industrial Inspections

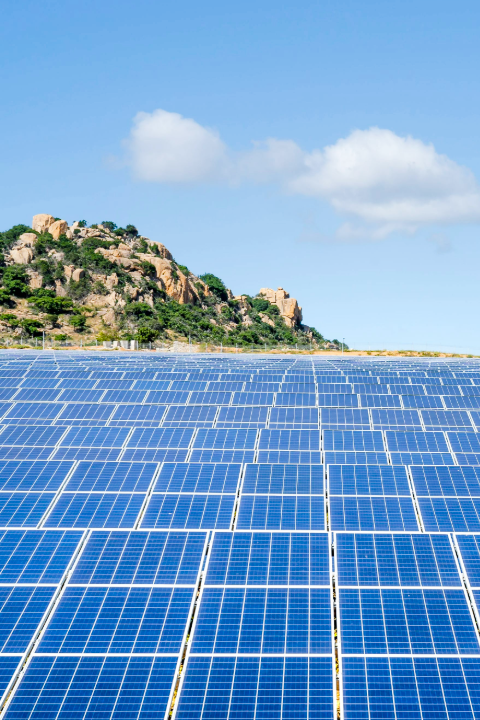

Solar Panel / PV Plant Inspection
Environmental Monitoring
In today’s fast-evolving world, decisions demand more than data—they need location intelligence. Geospatial intelligence solutions bring clarity, speed, and precision across every application. Unlock the true value of your data and turn insights into impact.
Unlock Full-System Insight with WIRIS Enterprise
Capture complete inspection data with accuracy, speed, and total system visibility now.
